CHEEBO High Quality Manual Lithium Ion Battery Spot Welder For 18650 Battery Pack Spot Welding Machine
Equipment introduction
● CHEEBO lithium battery spot welding machine adopts self-developed precision welding heads, with precise pressure regulation and control.
● Transistor Welding power supply is used for this type of welding, and no welding transformer is required inside. It is small, light and beautiful.
● There are three control methods for the 18650 battery spot welding machine: constant current, constant voltage, constant current, and constant voltage combination.
● Equipped with built-in pre inspection function, it can judge the workpiece before welding.
● The welding current of lithium battery spot welding machines can be quickly and effectively switched through transistors without the need for transformers
● The Welding power supply is controlled by switch mode, which can realize small and efficient high output welding.
●The welding current of the power supply rapidly increases, achieving high-quality welding in a short period of time.
●The lithium-ion battery pack spot welding machine has added continuous spot welding function, which can effectively improve production efficiency.
●Independently developed precision welding heads with precise pressure regulation control.
●Adopting microcomputer technology control, real-time monitoring of welding voltage, current, and resistance waveforms.
●5.7 inch high-definition LED display screen, convenient and intuitive device parameter adjustment, and can store multiple programs in advance.
Technical specification
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |
Application case
1. Energy storage battery pack 2. Electric bicycle battery pack 3. Power tool battery pack
Function Introduction

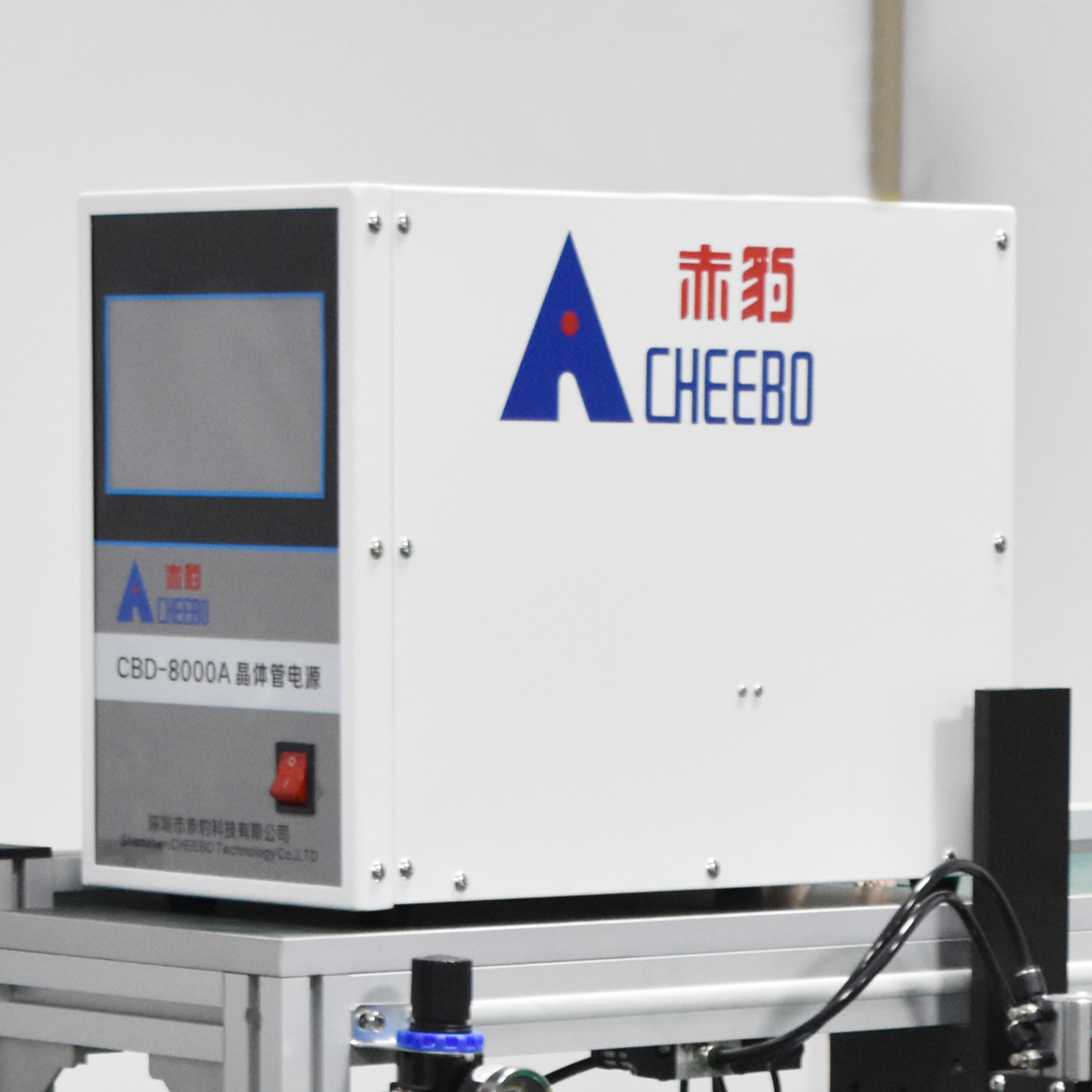

1. Transistor welding power supply
Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.
2. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.
3. Precision resistance welding head
Horizontal welding structure, double linear guide design left and right pressure can be adjusted according to the welding thickness.
Built-in pressure sensor, precise control to apply stable pressure.
Device action flow description
Power on - Check if the WELED switch is turned on - Place the product to be welded on the desktop - Step on the foot pedal -
Press down on the welding head - Spot welding completed - Return the welding head to its original position
FAQ
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Service process
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
